$429.45The Story

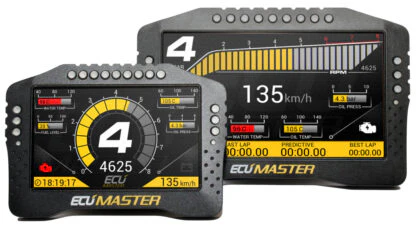

The ECU Master ADU comes with multiple pre-configured pages, which can be customized by the end user to display data required at every race stage (e.g. practice, qualification, race, troubleshooting, etc.) and changed manually or automatically (based on an advanced conditions system). Each channel displayed on a page (gauges, icons, texts, etc.) can be easily modified using user-friendly, Windows based software. Our comprehensive overlay system facilitates a multiple page display for important data (e.g. low oil pressure, best lap, etc.) independently of the actual page displayed.
ECU
The ECU Master ADU is compatible with most modern ECUs via the CAN Bus interface. This allows a huge amount of data to be transfered quickly and efficiently around the vehicle. It is also possible to connect sensor directly to the ADU display such a fuel level sender unit. Data can also be sent out of the ADU via the CAN Bus. Popular ECU setup information is included in the software which is available to download here
ECU Master
ECU Master is fast becoming the leading club level brand for motorsport electronics and the ADU is no exception. It offers a alot of customisation levels. If you want a picture of Super Mario to appear when your oil temp is too high, then ECU Master has you covered on the ADU.
EMU Black ECU
Direct seamless integration and compatibilty with the EMU Black ECU, if using the ECU Master eco system all data is readily available and very easy to setup.
To communicate with you dashboard you would need CAN bus interface , is possible to use PEAK -System or Kvaser interface or Ecumaster - most cost effective option.
| Features | |
| Lap timer: | Lap timer with memory, predictive timing, triggered by a beacon or GPS |
| Customization: | 48 available pages, user defined content, custom graphics allowed |
| Functions: | User configurable maths and logic |
| Overlays: | Yes user defined |
| CAN stream: | User defined, up to 48 input messages, predefined streams for popular ECUs |
| General specification | |
| Operating voltage: | 6-22V, immunity to transients according to ISO 7637, with reverse polarity protection |
| CPU: | 32 bits, automotive, 90MIPS |
| Temperature range: | -30°C to 80°C |
| Enclosure: | Anodized aluminium, CNC machined, IP61 |
| Connection: | Automotive 36-way AMP |
| ADU 5": | Antiglare TFT, 800x480, active area 108x64.8 mm, luminance 600 cd/m2 |
| ADU 7": | Antiglare TFT, 800x480, active area 154.08x85.92 mm, |
| Alarms: | 15 x ultrabright RGB LEDs used for alarms and shift lights |
| Communication | |
| CAN: | 2x CAN 2.0B (250, 500, 1000 kbps) independent |
| Serial: | RS232 (Rx, Tx) |
| USB: | Yes, for data logging |
| Inputs | |
| Analog: | 8 analogue inputs, 10 bits, 500Hz, software selectable pullups/pulldowns |
| Digital | 8 inputs with user defined sensitivity |
| Outputs | |
| Aux outputs | 2 x protected 3A low side outputs |
| Logging | |
| Memory: | USB Flash Memory |
| Rate: | 500Hz |
| Clock | Yes |
| Others | |
| Accelerometer: | 3 axis gyro and 3 axis acceleration |
| Light sensor: | Yes for auto brightness functionality |
| Temperature sensor: | Built in to trace device internal temperature |
| Real time clock: | yes with internal power supply |
