304 Stainless Steel Sch10 Bends (Manifold Construction)

Sch10 Bends, as used in the Walton Motorsport 304 Stainless Steel Turbo Manifolds Manifolds.

Tube available HERE to suit Sch10 Bends

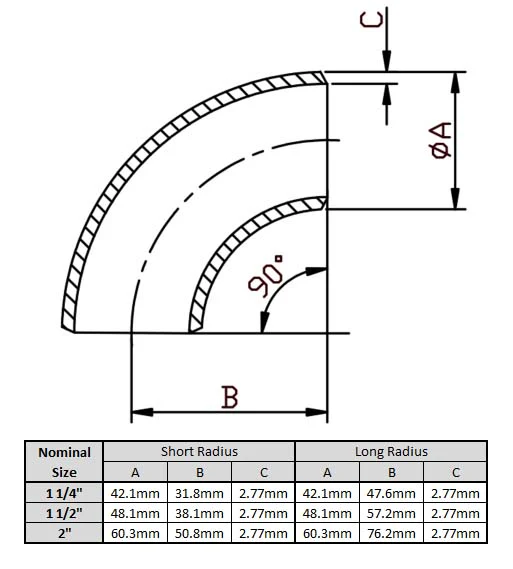

Available in nominal sizes of 1 1/4", 1 1/2", and 2" and either Short Radius or Long Radius see below for actual dimensions. These are the most common sizes used in turbo exhaust manifold construction. We typically use the 1 1/4" Size for the primary pipes and 1 1/2" for wastegate pipework up to 50mm, and then 2" for wastegate 50mm and above

• Nominal 1 1/4" = 42.2mm OD, 2.77mm wall thickness (36.66mm ID). The long radius has a CLR of 47.6mm and Short Radius CLR is 31.8mm

• Nominal 1 1/2" = 48.1mm OD, 2.77mm wall thickness (42.56mm ID). The long radius has a CLR of 57.2mm and Short Radius CLR is 38.1mm

• Nominal 2" = 60.3mm OD, 2.77mm wall thickness (54.76mm ID). The Long radius has a CLR of 76.2mm and Short Radius CLR is 50.8mm


Conforms to ASTMA403, ANSIB16.9, ANSIB16.28
